  • 2-in-1 solution for both throttle and clutch
  • Realistic pedal feel using patented mechanical solution with Arc profiles
  • Consistent sensor feedback across entire pedal travel, without dead zones

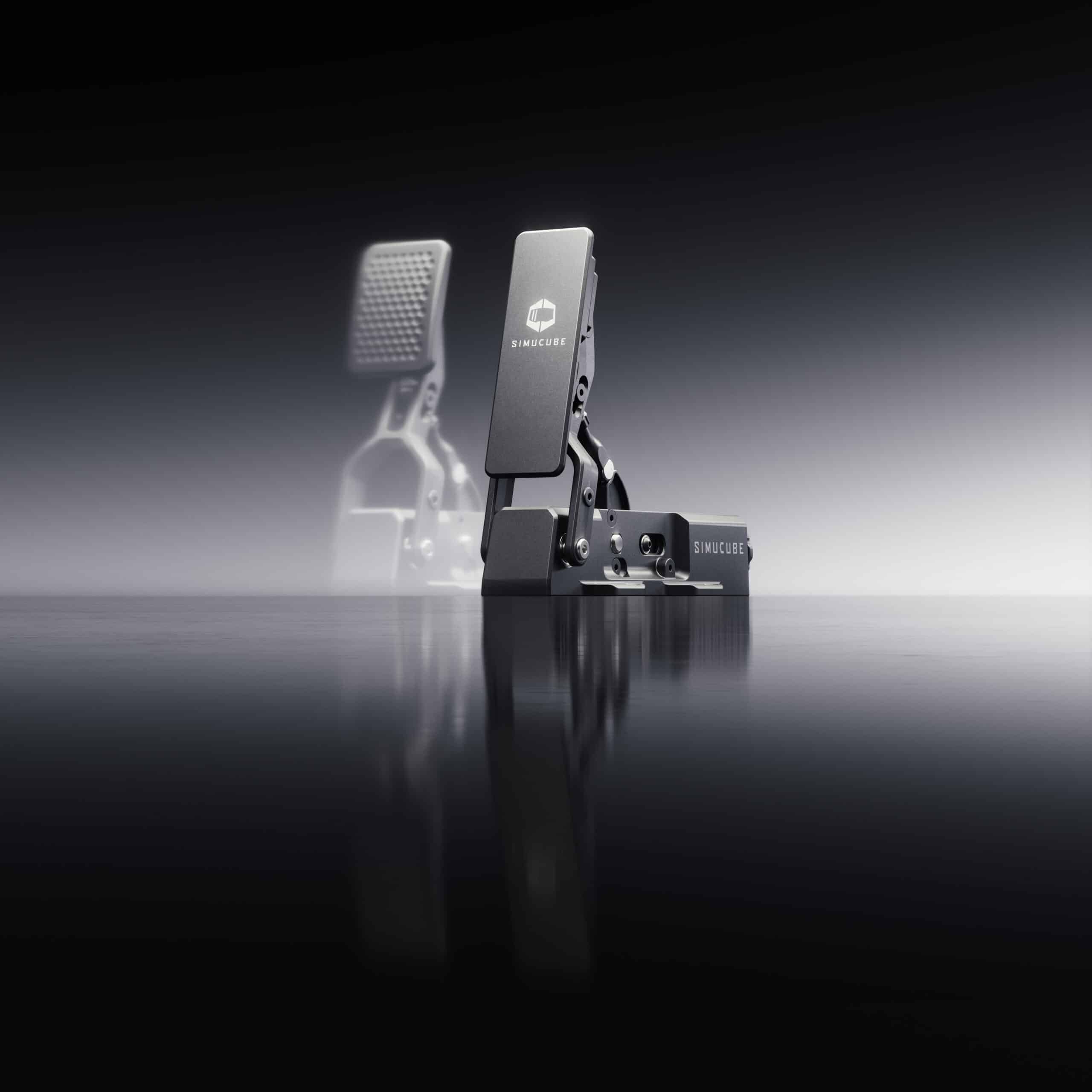

Simucube Co-Pedal is a passive pedal built to perfectly complement Simucube ActivePedal. It can be configured as either a throttle or a clutch, adapting easily to your setup. Preload, travel, pedal angle, and pedal face tilt are all easy to adjust with the included tools. The redesigned shell frame reduces flex and increases stability, giving you a consistent, precise feel in every configuration.

Simucube Co-Pedal is expected to ship in mid to late December

$ 449.00

Tax added at checkout. NO SURPRISE COSTS. The price you see is the price you pay.

Available on pre-order

Frequently bought together

Simucube Throttle Damper

Simucube x Tony Kanaan Pedal Face Throttle

Simucube x Tony Kanaan Pedal Face Brake

  • Dimensions: 242 mm x 83 mm x 308 mm
  • Weight: 1,6 kg
  • Adjustable travel: 30 mm – 50 mm – 70 mm
  • Rest angle: 4 – 14 deg
  • Preload range: 0 – 13 mm
  • Mounting hole dimensions: 4x M5 slot
  • 1x Simucube Co-Pedal (preassembled as throttle)
  • 1x Clutch pedal face (ActivePedal Ultimate pedal face)
  • 1x Clutch spring (stiffer as throttle spring)
  • 1x Clutch Arc profile
  • 1x RJ25 cable (60 cm) (to connect to an ActivePedal)
  • 1x Fastener set for aluminium profile and baseplate mount
  • 1x 4mm Hex key with ball-tip and T-handle
  • Special tool for pre-load screw
  • 1x Quick start guide
  • Delivery: Delivery usually takes 2-6 days since the order was placed.
  • Returns: 30 day  free returns policy. Learn more about our returns here!
  • Destinations: We currently only ship to EU & US. Checkout our resellers for other regions.

We are here for you. If you have a question, please submit a ticket and we will get back to you as soon as possible. No one gets left behind.

Other resources that you may find of help:

Delivery within 2-6 days

100% satisfaction guarantee

Excellent customer service

3 year warranty

WATCH VIDEO

Learn all about Co-Pedal

NEXT GEN PASSIVE PEDAL: THROTTLE OR CLUTCH

2-in-1 Throttle and Clutch

Can be easily assembled into a throttle or clutch

THROTTLE MODE

Co-Pedal Throttle

  • Smooth throttle feel with patented mechanics
  • Consistent hall angle sensor feedback
  • Meant to be combined with ActivePedal
  • Adjustable travel and preload for full control
  • 3 years warranty

CLUTCH MODE

Co-Pedal Clutch

  • Realistic bite point feel
  • Inverted mounting
  • Meant to be combined with ActivePedal
  • Easily swappable to clutch configuration
  • 3 years warranty

simucube co-pedal

Patent pending Arc technology

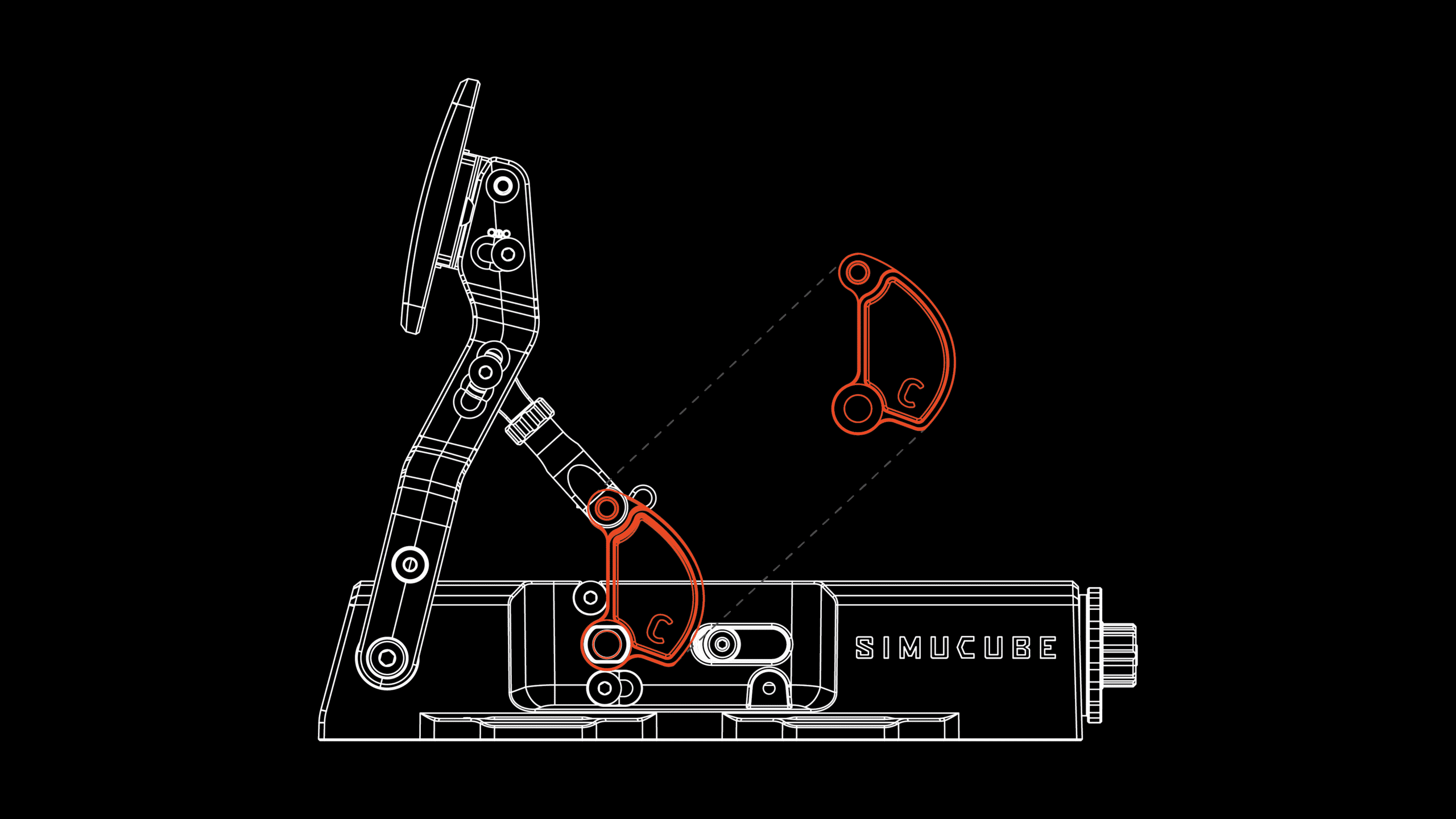

At the heart of Simucube Co-Pedal lies our Arc technology. This patented modular system allows you to physically transform the pedal’s function with an innovative Arc profile. Featuring a robust frame construction that eliminates flex, paired with an Arc profile, which provides a crisp mechanical and immediate feel of the wanted profile. The Arc profiles provided by Simucube have been manufactured with ultra precision and are built to last, as is the pedal itself.

What is Arc Technology?

A patent-pending modular system that physically transforms your pedal's function. Swap between throttle and clutch in 60 seconds.

Throttle configuration

The linear Arc piece provides smooth, progressive throttle control. Perfect for precise acceleration.

  • Progressive spring tension curve
  • Smooth linear response
  • Adjustable travel distance

Clutch configuration

The engagement Arc piece delivers authentic clutch feel with distinct bite point.

  • Realistic engagement point
  • Heavy-duty spring system
  • Professional-grade durability

HALL ANGLE SENSOR

Inspired by motorsport drive-by-wire systems

Simucube Co-Pedal utilizes a hall angle sensor for position measurement, mirroring throttle and clutch pedals in high-end race cars. Unlike traditional load cell-based systems that measure force, this design focuses on precisely measuring the angle of the pedal, providing a more accurate and consistent experience. This eliminates dead zones and ensures consistent sensor feedback across the entire pedal travel.

ADJUSTABILITY

Find the perfect angles

  1. Adjusts preload
  2. Adjusts travel length
  3. Adjusts the length of the stem

4. Adjusts the angle of the pedal

5. Adjusts the angle of the pedal face

6. Adjusts pedal face height

simucube co-pedal

Meant to be combined with ActivePedal

The Co-Pedal seamlessly integrates with ActivePedal Pro and Ultimate, giving you the ultimate sim racing pedal setup.

"The Co-Pedal's Arc Technology gives us the flexibility we need. One pedal that performs flawlessly as both throttle and clutch—that's innovation."

Team Redline

Frequently asked questions

  • Adjustable travel: 30 mm – 50 mm – 70 mm
  • Max. force as Throttle (at 100% pre-load and 70 mm travel): 11 kg (approx. 110 N)
  • Max. force as Clutch (at 100% pre-load and 70 mm travel): 25 kg (approx. 250 N)
  • Preload range: 0 mm - 13 mm (approx. 0-5 kg)
  • Dimensions: H x W x L: 242 mm x 83 mm x 308 mm (as Throttle)
  • Weight: 1,6 kg (same for Throttle and Clutch)

Simucube Co-Pedal will be $449 excluding sales tax.

If you want a throttle AND a clutch, you need to purchase two Simucube Co-Pedals.

Simucube Co-Pedal is available for purchase and shipping in late 2025
